| AYJ
type is a flow meter of flange connection convenient to the industrial
piping similarly to the AB type, and because it is all made of stainless
steel or of PVC, this type can be used within the atmosphere of corrosive
gas. As this type has a simple structure, it can be maintained without any
difficulty. Further, for enhancing its safety more, it is equipped with a
protective scale plate made of acrylic resin.
AYJ
TYPE AY
TYPE
Liquid Contact Portion: This portion can be fabricated
from the hard quality glass.

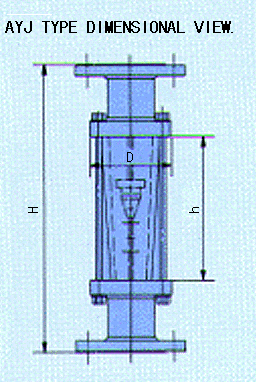

AYJ TYPE DIMENSIONAL
| Code. |
H |
h |
D |
LIQUID(WATER) |
GAS(AIR) |
|
Max flow. |
Max flow. |
| Dia. |
L/M |
L/M |
| 3Athrough15A |
350
(410) |
200
(260) |
60 |
50 |
500 |
| *45 |
*450 |
| 20A |
350
(410) |
200
(260) |
65 |
80 |
800 |
| *60 |
*600 |
| 25A |
350
(410) |
200
(260) |
75 |
120 |
1200 |
| *120 |
*1200 |
| 32A |
350
(550) |
200
(400) |
75 |
200 |
2000 |
| *200 |
*2000 |
| 40A |
350
(550) |
200
(400) |
90 |
300 |
3000 |
| *250 |
*2500 |
| 50A |
350
(550) |
200
(400) |
110 |
450 |
4500 |
| *450 |
*4500 |
| 65A |
(550) |
(380) |
130 |
530 |
6200 |
| *--- |
*--- |
- ( )L TYPE(LONG TYPE)
- FLOW RANGE: 1:10
- OPTIONS: Lead switch alarm(2 points)/Acrylic safety cover.
- This type can be fabricated with the provision of 65A alarm.
|
MATERIAL
- Taperd tube
*Hard
glass
- Float
*Duracon,
*SUS304,
PTFE,
*SUS316, PVC,
Hastelloy C
- Fitting
*SCS13,
SCS14, PVC, Hard glass
- Packing
*Natural
rubber, *Neoprene,
*PTFE,
*Buna
N, Hycar, Viton, erflon
EFFICIENCY
- +-1% of full scale
- Pressure proof 10kg f/cm2G
SCALE
- Tapered tube scale.
- Flow scale: mm scale, %scale
- Nominal scale plate
length.
*110mm(3A
through 50A)
Long type 150mm(15A
through 25A)
240mm(32A through
50A) 200mm(65A)
CONNECTION
- Flow direction: Lower to Upper
- *Flow scale: mm scale
- Flange standard: *15A through 150A JIS 10K
Remarks
- The protective cover of taper tube can be mounted (AYJP type).
- Electric system alarm can be mounted (lead switch system)
The asterisk * mark stands for the standard product.
 |
