SPECIAL TUBE SYSTEM FLOAT TYPE FLOW METER

AZ (Popular Machine Model)
AZW (Upper Rank Machine Model) Series   Indication Complete Follow-up System


      The AZ type is a flow meter which is higher in stability and compact in size and moreover all-round economical type by adopting a new mechanism (Pilot-taper) etc. to the GLASS type and metallic tube area system flow meter having such two great advantages as the conventional "easiness to use and low pressure loss".
      This type can correspond to all the purposes like the chemical resistance, hazard resistance, light resistance, etc. by the selection of mechanism.
      The AZ type is more compact than the conventional product, more attractive in price and easier to handle and maintain the product.
      The indication is of vertical gauge, equipped with the outside output, and the explosion-proof structure type can be selected.

Machine Model Selection:
*The AZ series are available in
AZ-S[SUS],
AZ-GL[GLASS LINING],
AZ-P[PVC],
AZ-GS[GLASS TUBE + MAIN BODY SUS],
AZ-T[PTFE],
AZ-GP[GLASS TUBE + MAIN BODY PVC],
AZ-SN[SANITARY]

7 machine models.

With a protective cover: K, With a general electric signal: E, Explosion-proof structure: D, With a lead switch: R.



MATERIAL
  • Taperd tube: *SUS316, *PVC, *Hard glass, PTFE
  • Float: *SUS304, SUS316, Hastelloy C, PVC
  • Fitting: *SCS14, *PVC, *Hard glass
  • Packing: *PTFE, Neoprene, Viton

EFFICIENCY

  • Accuracy: Full scale +-1% or lower
  • Accuracy: (flow versus signal) Full scale +-2 % or lower. (Incorporating the electric circuit unit).
  • Linearity: (flow versus signal) Full scale +-1% or lower. (Incorporating the electric circuit unit).
  • Power source: DC24V +-10%
  • Output signal: DC4 through 20mA(Load resistance: less than 500 ohm)
  • Pressure resistance: 10kgf/cm2G

SCALE

  • Flow scale: Make an enquiry to the maker for the PVC and GLASS-LINING flow
  • Nominal scale: Vertical scale 80mm

CONNECTION

  • Flow direction: Lower to Upper
  • Flange standard: *15A through 65A JIS 10K.
                              80A or more

REMARKS

  • The code of flow caliber has been the standard for the flange code.
  • The alarm contact (lead switch) can be mounted.
  • The electric signal can be mounted.
The asterisk * mark stands for the standard product.
*AZW type
The popular type (AZ) tightens the upper/lower main body flanges and the detector with use of 4 supports, but this AZW type welds the connection flange to the detector and couples the upper and lower main bodies together

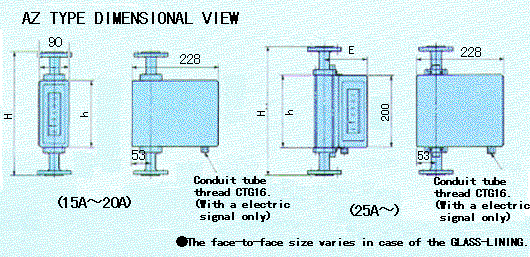

AZ TYPE DIMENSIONAL
H h E
15A 350 200 ---
20A 350 200 ---
25A 350 200 143
32A 350 200 143
40A 350 200 150
50A 350 200 140
65A 370 200 17
