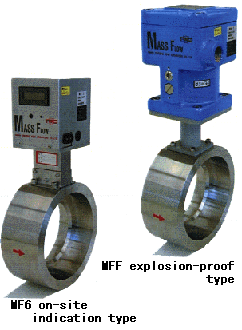

Explosion-proof Mass Flow Meter
Mass Flow Meter with Digital Display (NEW PRODUCTS)


    The products that realized a wide range of lower price have been added to our products by changing the thin tube system layer detector unique to our company into the orifice type as regards the detection area of conventional MFF explosion-proof emitter and MF 6 type on-site indication mass flow. The Explosion-proof performance of MFF type maintains the d3aG4, while the MF 6 type incorporates the A-D converter into the on-site indication. The meter can be used immediately by connecting the power source AC 100V.

 SPECIFICATIONS
  • Accuracy: Full scale +-2%
  • Linearity: Full scale +-1.5%
  • Reproducibility:Full scale +-1%
  • Response: 63% Less than 1sec.
  • Service temparature range: 0 through +45degrees centigrade
  • Fitting: SUS304, SUS316
  • Measurement range 1 through 10
  • Indication: MF6 3 1/2 Max 1999 LCD high 7.4mm
  • Power source: DC +-12V MFF
                           AC 100V MF6
  • Output: DC4 through 20mA
                DC1 through 5V


Both the outlet and inlet need the straight tube portion of more than 5D.

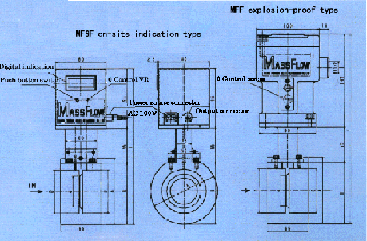

EXPLOSION-PROOF MASS FLOW METER and
MASS FLOW METER WITH DIGITAL DISPALY DIMENSIONS VIEW
Dia. D A B L Standard flow range Pipe size Flange standard
MFS MFF
32A 36.7 75 65.5 215.5 267.5 AIR        700NL/M 42.7*3t 32A10K
40A 42.6 80 71 221 273 1000NL/M 48.6*3t 40A10K
50A 53.5 90 82.5 232.5 284.5 1500NL/M 60.5*3.5t 50A10K
65A 69.3 105 97 247 299 2500NL/M 76.3*3.5t 65A10K
80A 81.1 112 106 256 308 4000NL/M 89.1*4t 80A10K
100A 106.3 135 130 280 332 6000NL/M 114.3*4t 100A10K
125A 129.8 160 155 305 357 10000NL/M 139.8*5t 125A10K
150A 155.2 182 178.5 328.5 380.5 15000NL/M 162.5*5t 150A10K
200A 204.3 230 227 377 429 20000NL/M 216.3*6t 200A10K
